Grizzly G0513X2 – 17″ 2 HP Bandsaw w/ Cast-Iron Trunnion

G0513X2 17″ 2 HP Wood Bandsaw
From top to bottom, this woodcutting bandsaw is built to perform.

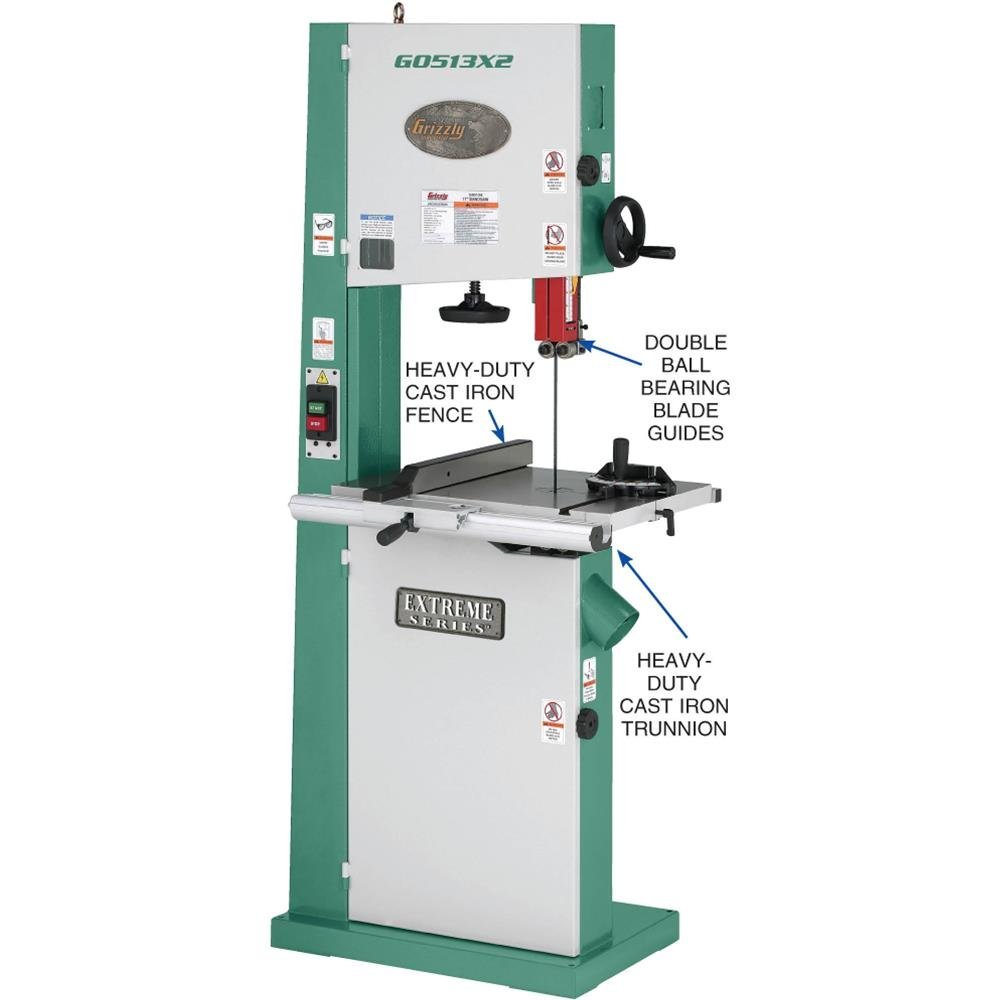

The G0513X2 17″ 2 HP Bandsaw features a heavy-duty cast-iron trunnion and double ball-bearing blade guides usually only found on machines costing much, much more.
The 2 HP motor powers through hardwoods with a 12-1/8″ cutting height and 16-1/4″ throat provide ample cutting capacity for most applications. For a full range replacement and resaw blades for your G0513X2, .

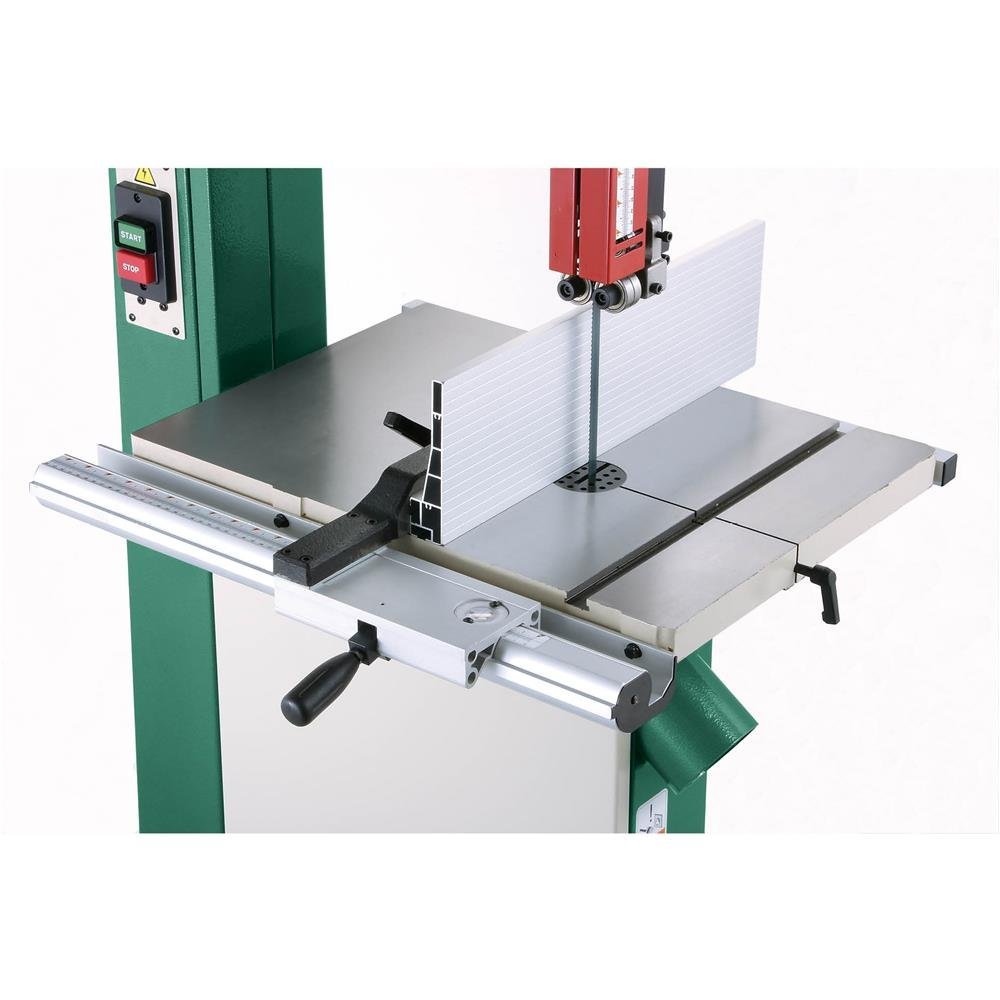

The G0513X2 has a large 23-5/8″ x 17-1/4″ cast-iron table that can tilt from 5° left to 45° right. A cast-iron fence with extruded-aluminum rail and resaw fence attachment mount to the table.
Power and capacity are just a part of why owners continue to give this bandsaw a solid 5-star rating.

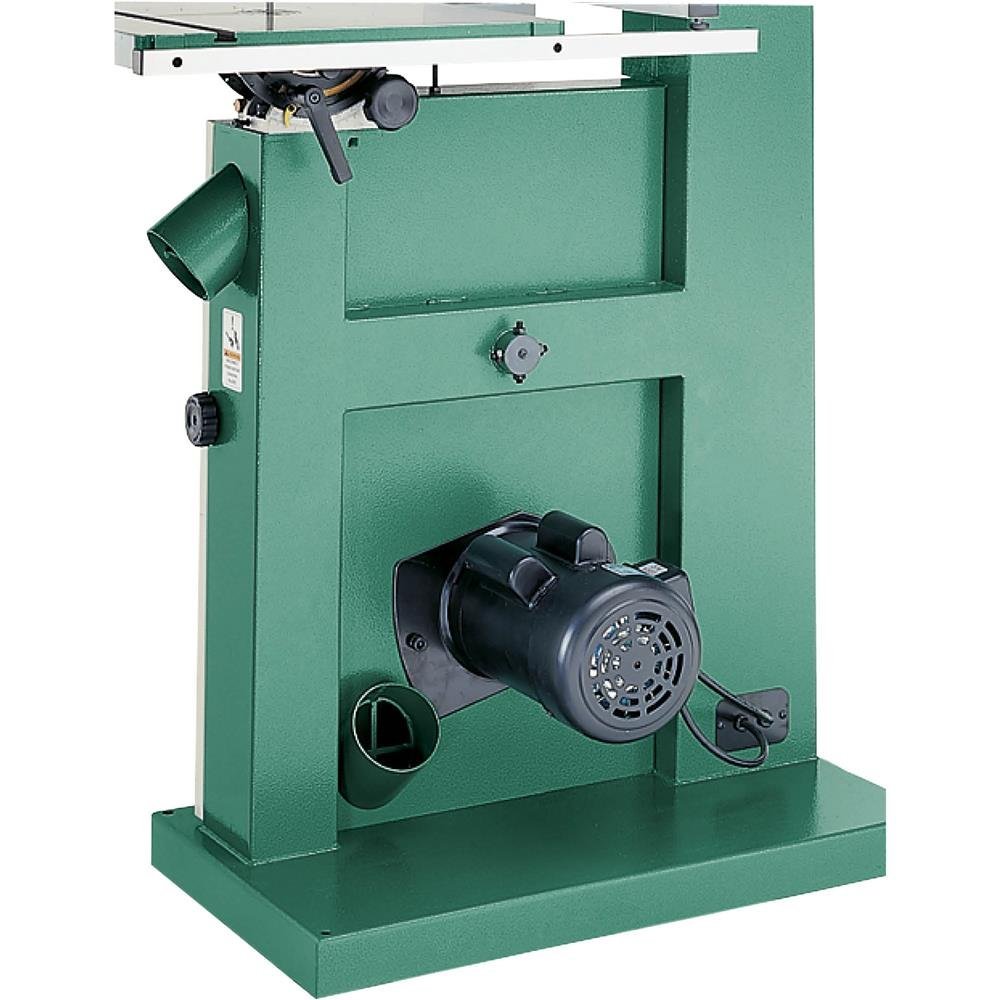

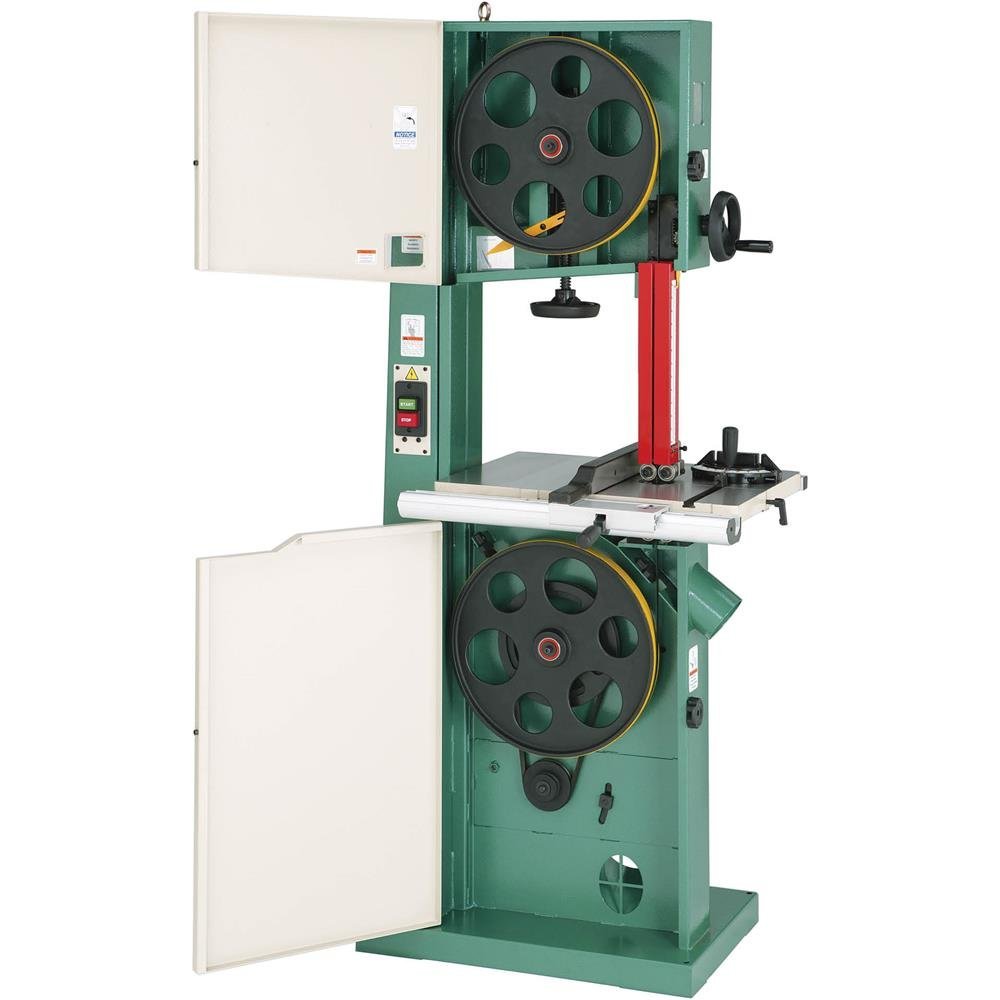

The stout steel frame houses the heavy computer-balanced cast-iron wheels designed to minimize vibration during resaw operations.
This machine is prewired to operate on a 220V power supply circuit that has a verified ground and meets the 220V operation requirements. If you prefer 110V, refer to the Voltage Conversion instructions in the manual.
The G0513X2 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your bandsaw.
Made in an ISO 9001 factory
CSA certified
SPECIFICATIONS:

Motor: 2 HP, 110V/220V (prewired 220V), single-phase, 19A/9.5A
Throat (max. width left of blade): 16-1/4″
Resaw capacity: 12″
Blade size: 131-1/2″ long
Blade width range: 1/8″–1″ wide
Blade speeds: 1700, 3500 FPM
Table size: 23-5/8″ x 17-1/4″
Table tilt: 5° left, 45° right
Floor to table height: 37-1/2″
Footprint: 27″ W x 18″ D
Overall size: 32″ W x 32″ D x 73″ H
Approximate shipping weight: 421 lbs.

FEATURES:

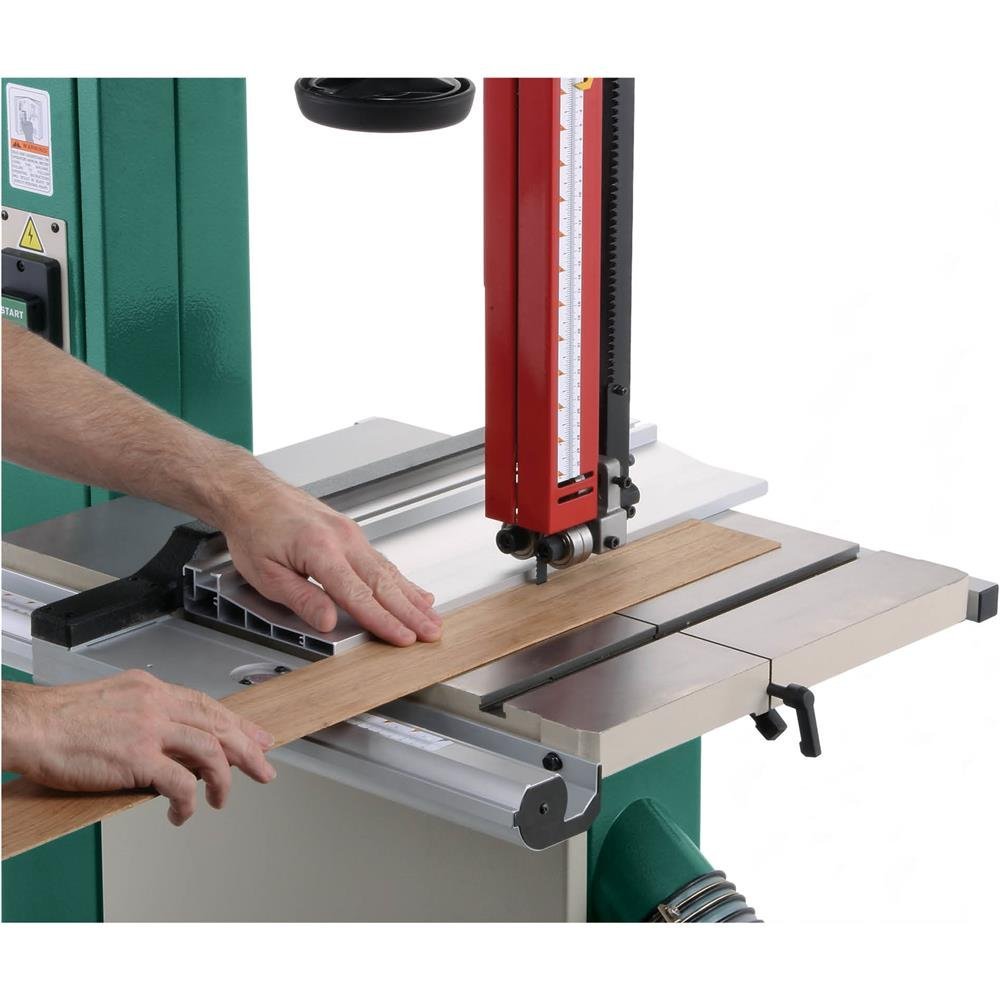

Deluxe cast-iron fence with extruded aluminum resaw fence attachment
Magnifying window over fence scale
Precision-ground cast-iron table
Quick-change blade release/tensioner
Blade tension indicator
Micro-adjusting geared table
Blade height scale measurement
Blade tracking window

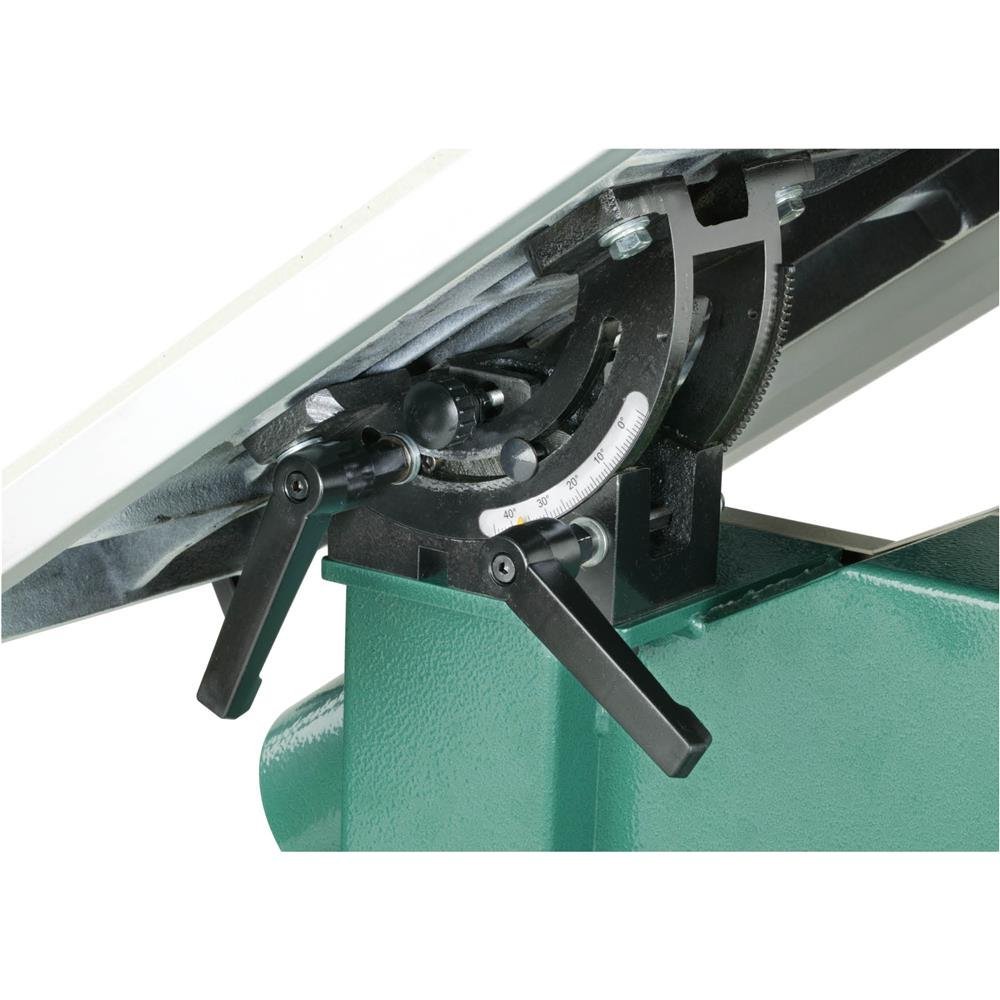

Cast-iron table trunnions
Fully-enclosed ball-bearing blade guides
Miter gauge
Includes 1/2″ 6-TPI hook blade
1-year limited warranty

Note: The G0513X2 does not come with a plug. The recommended plug type is L5-30 for 110V or 6-15 for 220V.
